01 / BRIEF
Define Your Requirements
Share the application, reference images, dimensions, target quantity and appearance requirements.
XKTAN
Manufacturing
03 / CUSTOM DEVELOPMENT
Your Custom Manufacturing Process
02 / REVIEW
Design & Process Review
Review structure, materials, tooling and assembly details, and identify what needs validation.
03 / SAMPLE
Sample & Specification Approval
Develop samples under the agreed plan and review dimensions, appearance and functional requirements.
04 / PRODUCTION
Production & Delivery
After sample and specification approval, agree on quantities, quality requirements, packaging and delivery.
PROCESS OPTIONS
The right process for your product.
Equipment & Processes
Illustrations of the forming and machining directions confirmed for XKTAN. Inspection scenes illustrate a checking workflow. Equipment appearance and project requirements should be confirmed separately.

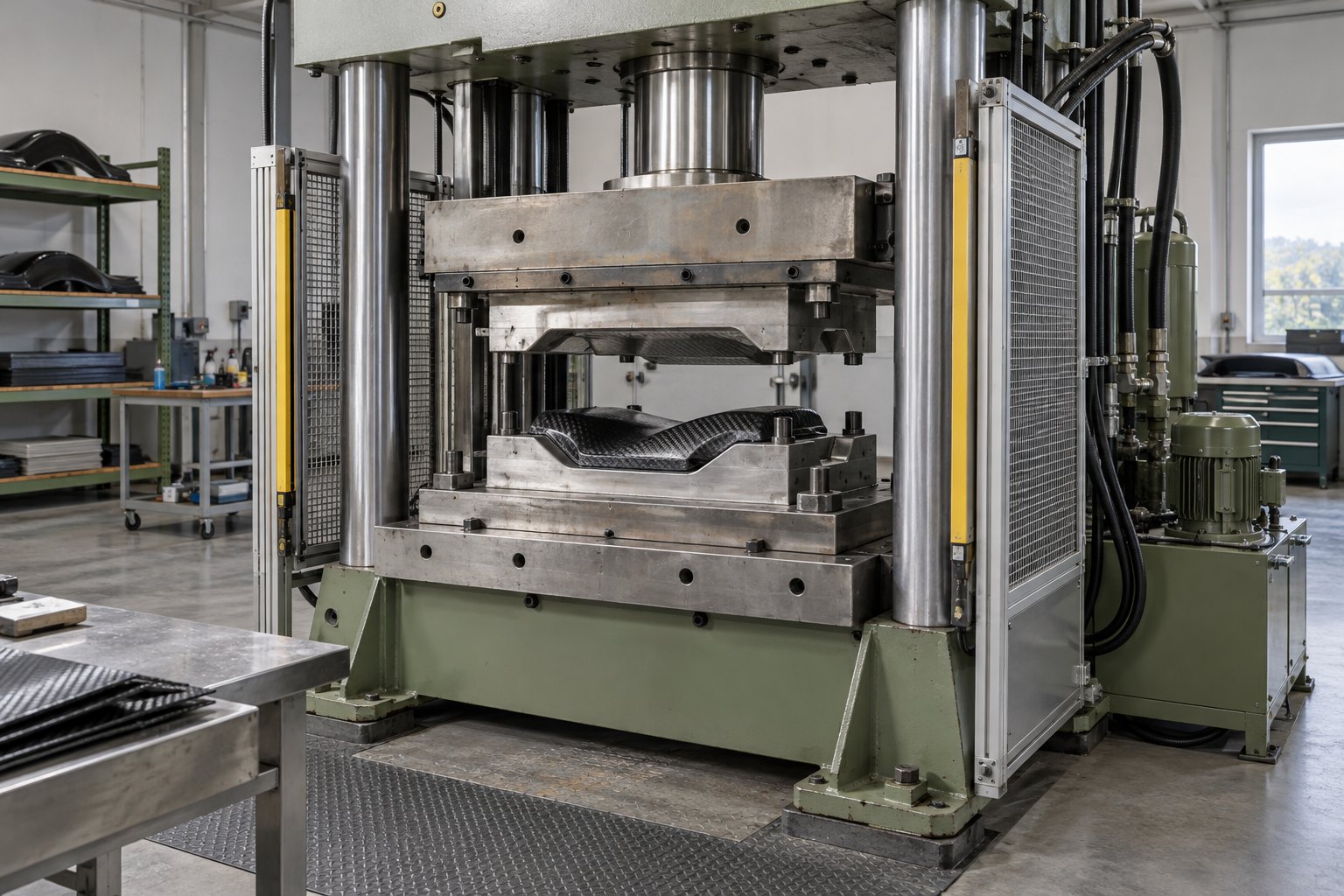

Hot-press molding
Heated tooling and press forming, planned around the part geometry and material system.

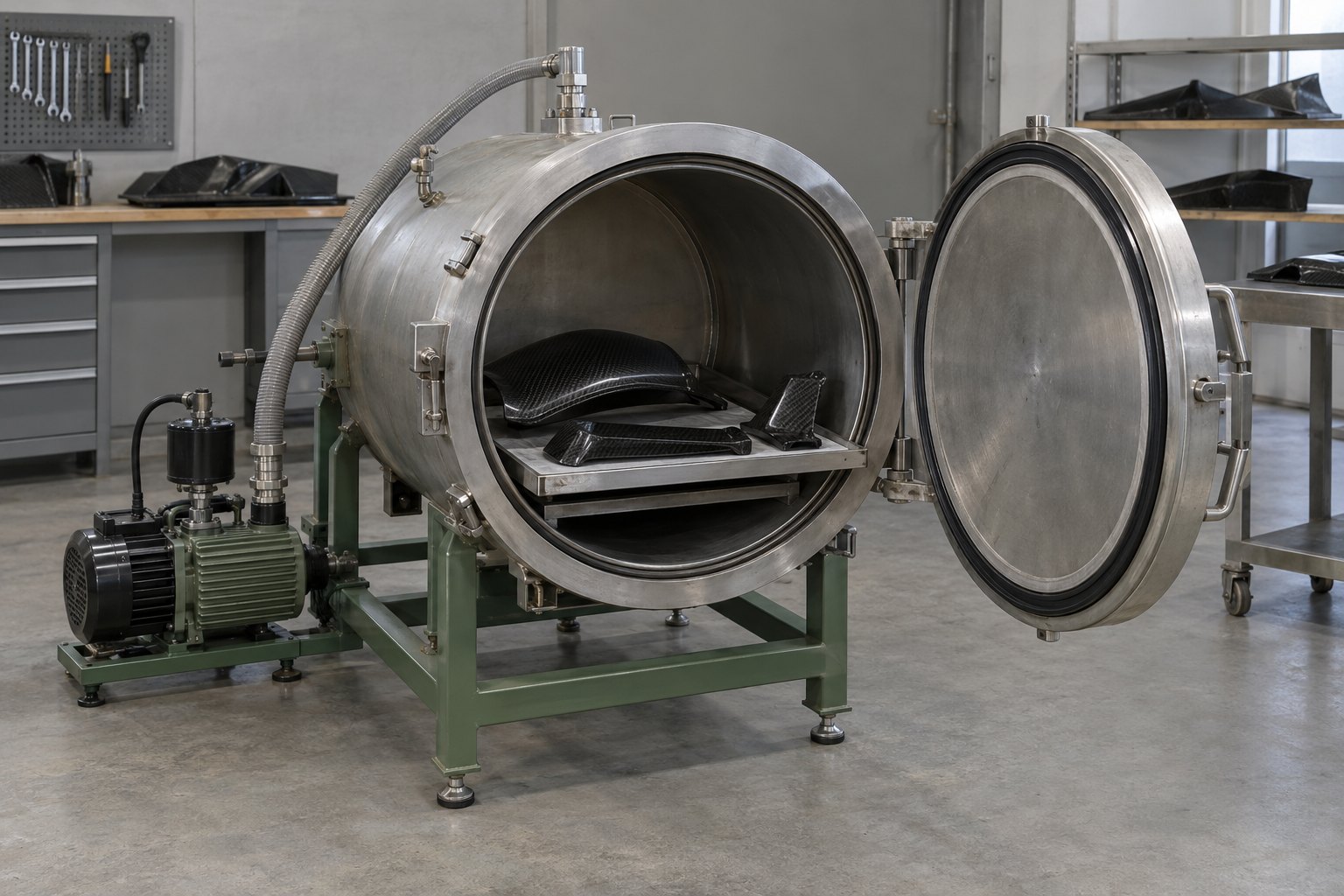

Vacuum vessel
A vacuum-vessel setup illustrating tooling placement, sealing and vacuum connections.

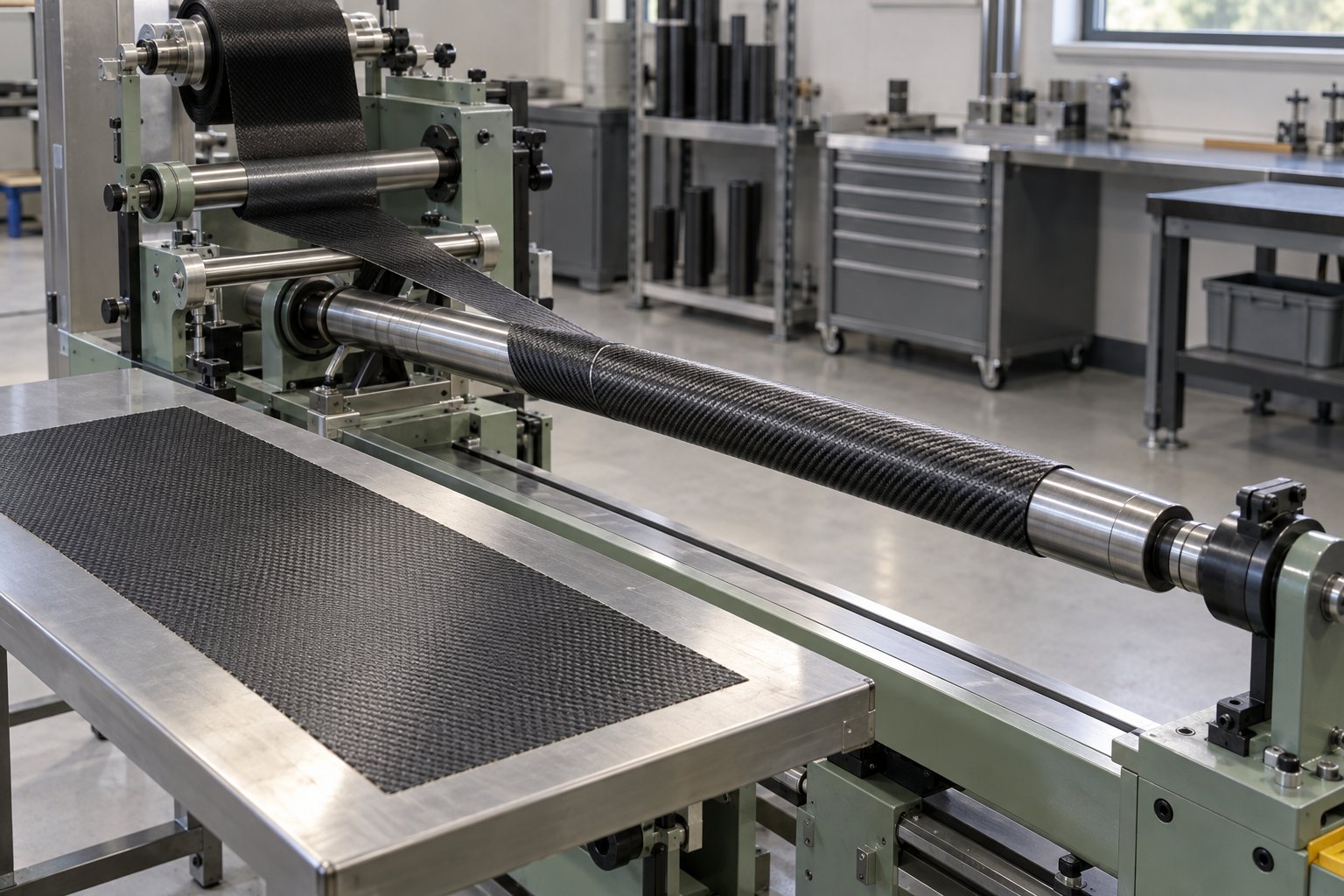

Roll-wrapped tubes
Mandrel preparation and roll-wrapping for carbon fiber tube projects.

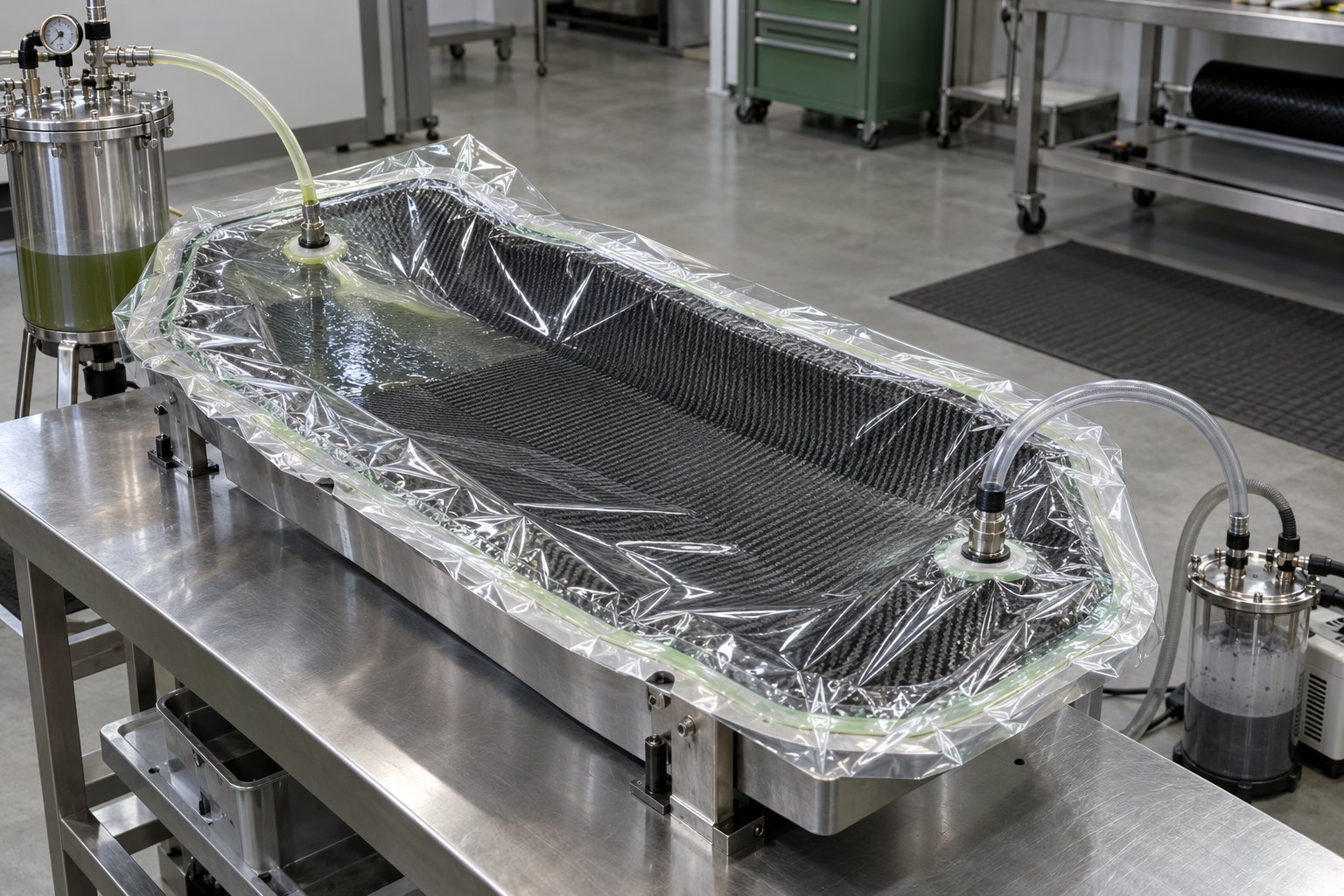

Vacuum infusion
A sealed mold, resin inlet and vacuum outlet illustrate the infusion setup.

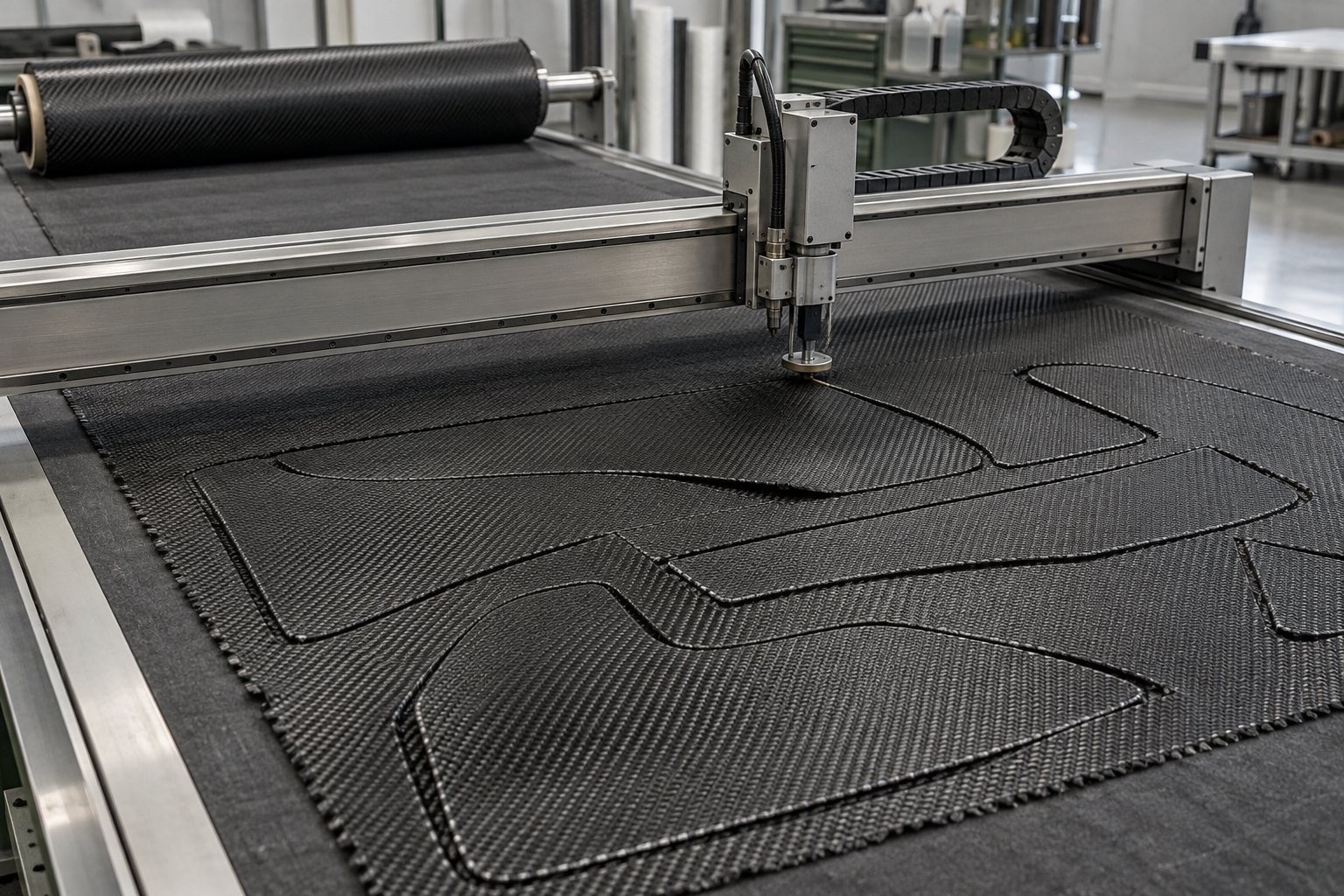

Oscillating-knife cutting
Sheet-material preparation and cutting patterns before layup.

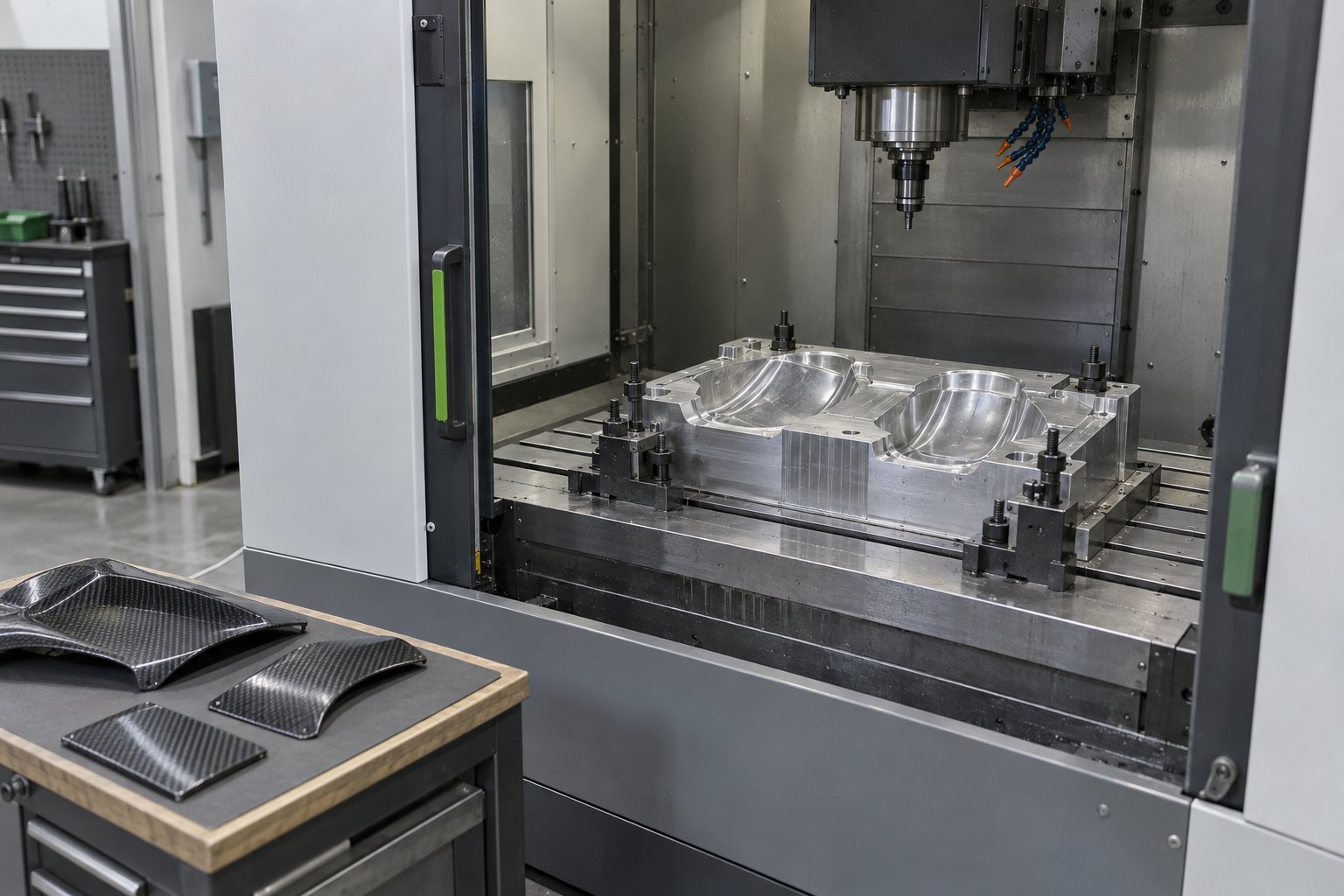

CNC machining
Machining of tooling and project-specific part interfaces.

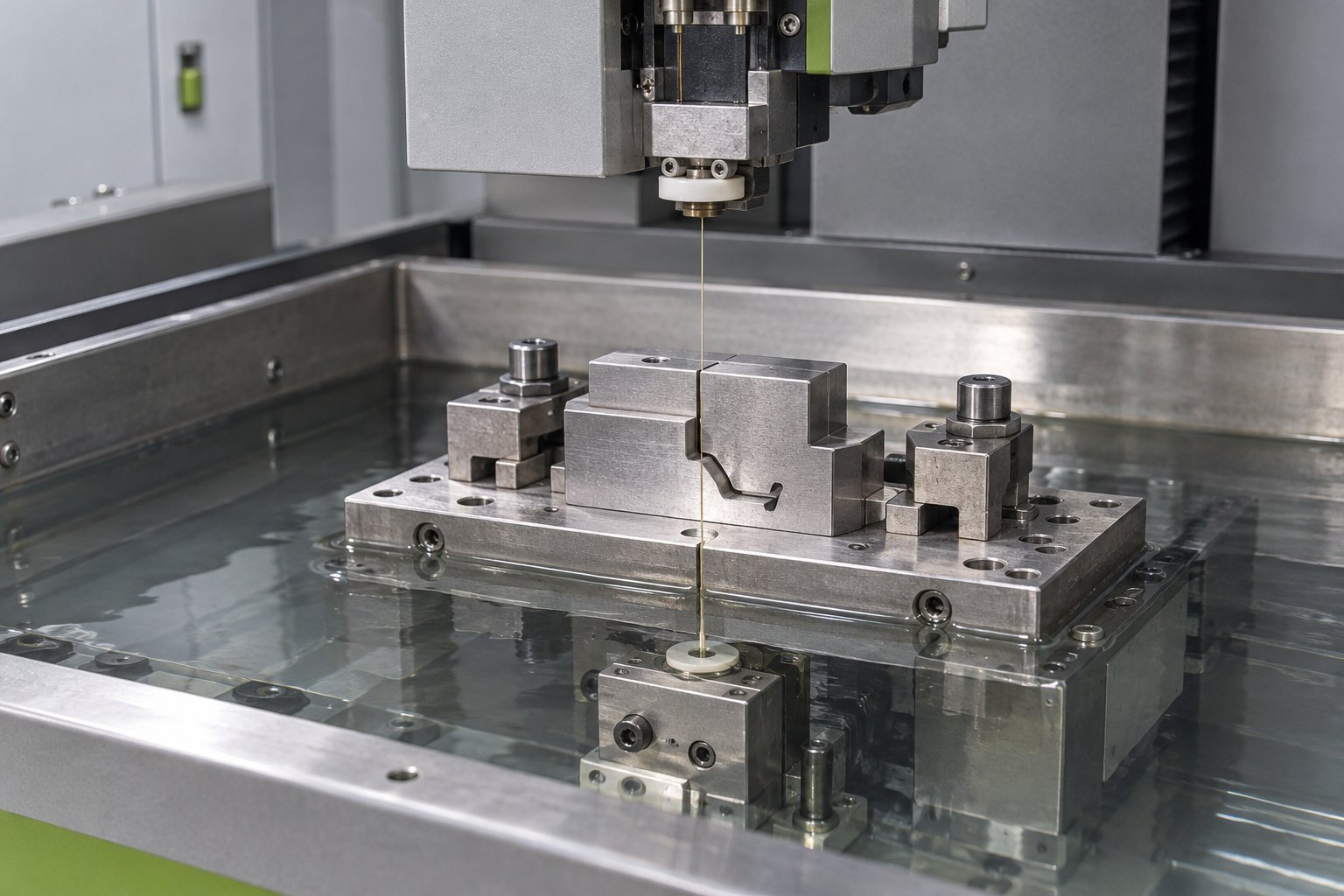

Wire EDM · Metal tooling
Wire-cut machining illustrated on a conductive metal tooling insert.

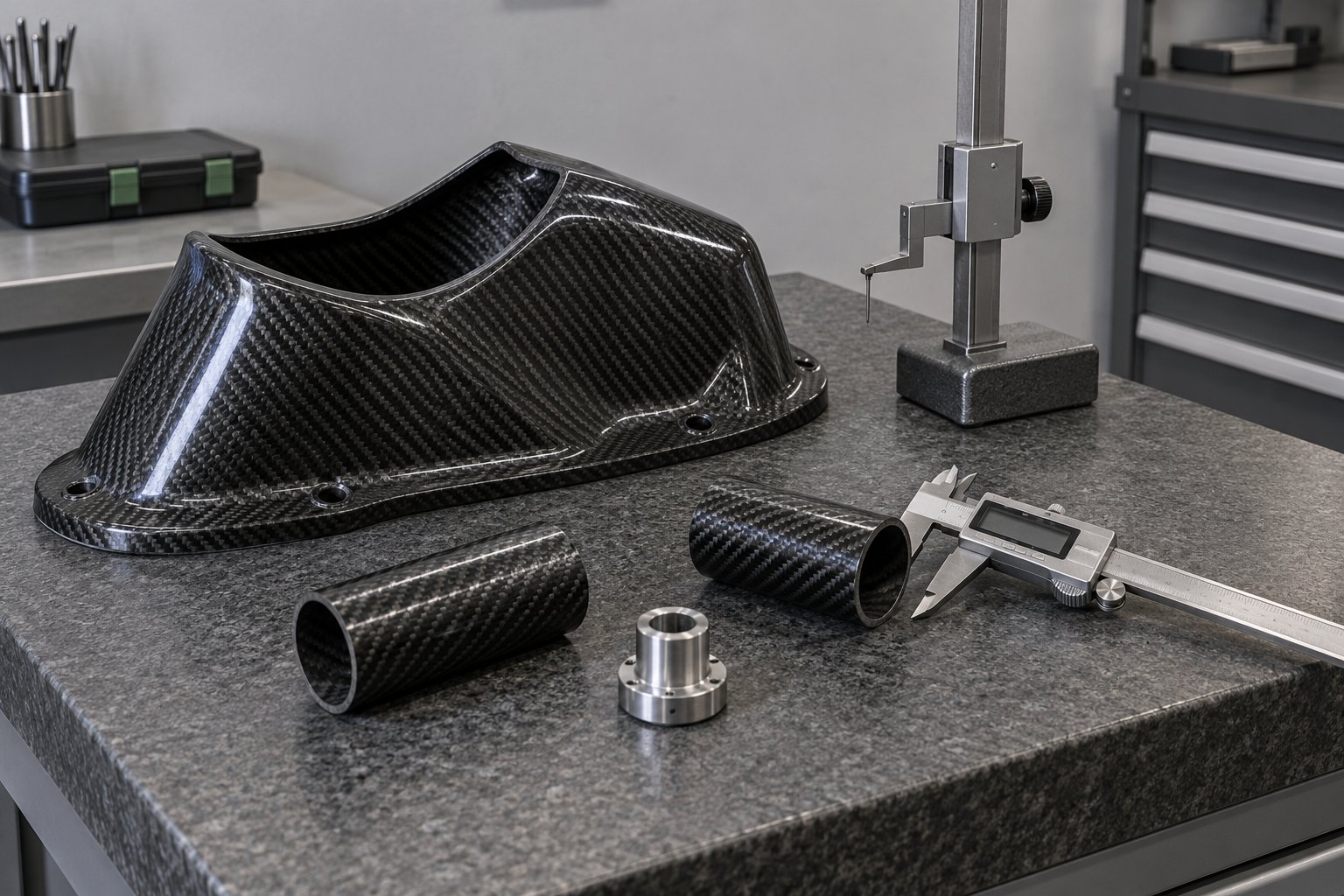

Inspection workflow · Illustration
Dimensional, visual and assembly checks using sample parts and basic measuring tools.
XKTAN / AI & ROBOTICS
Structure & Assembly

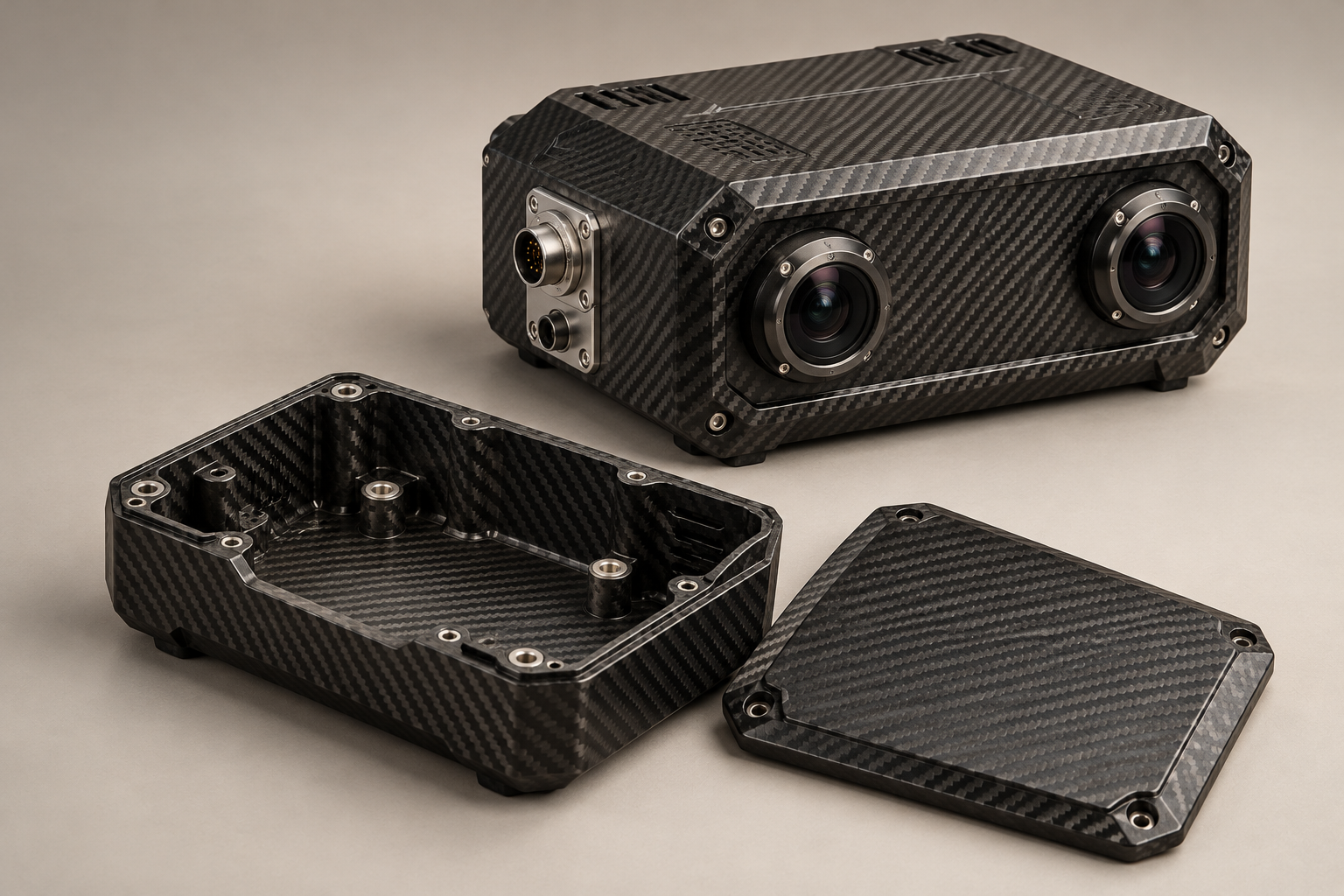

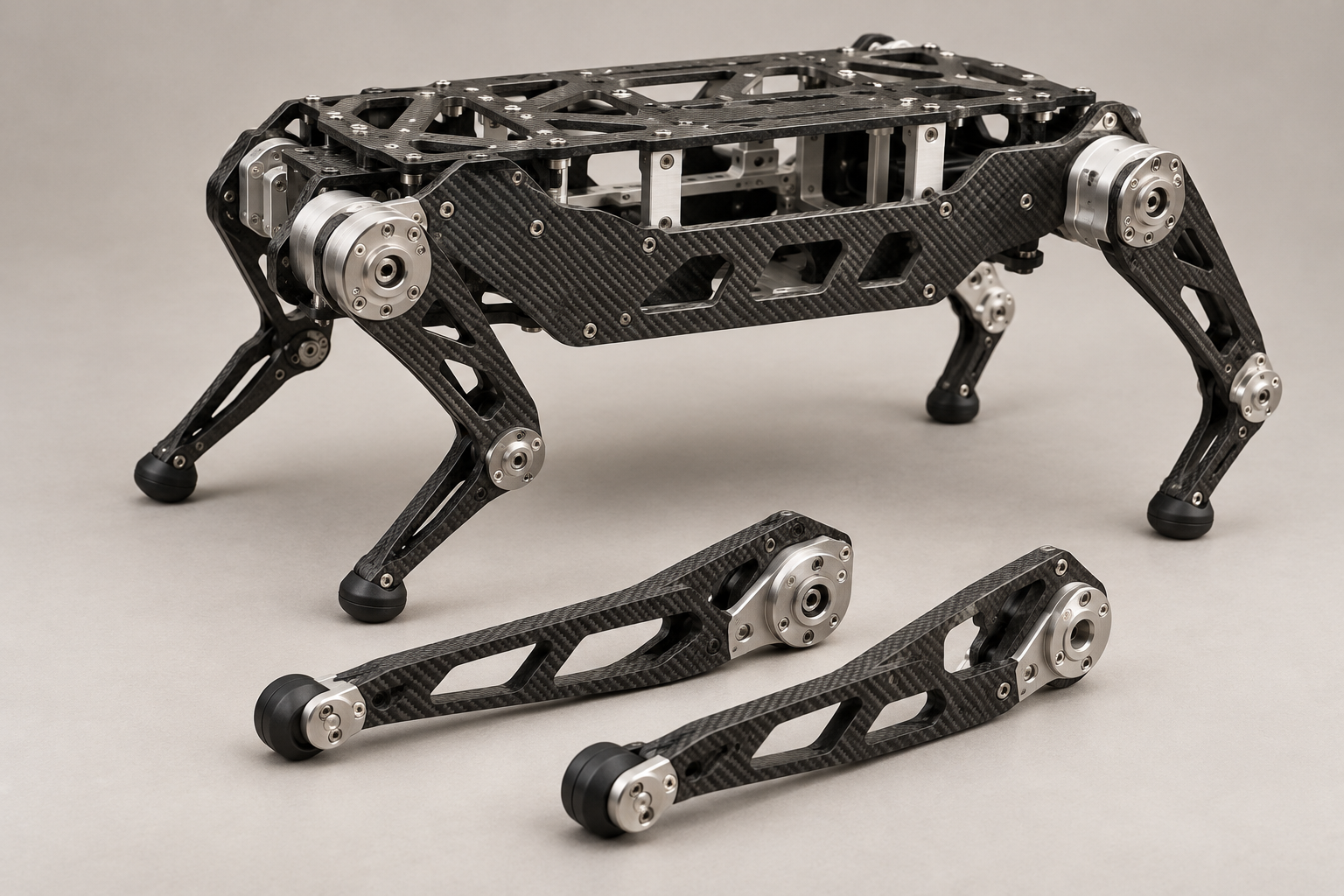

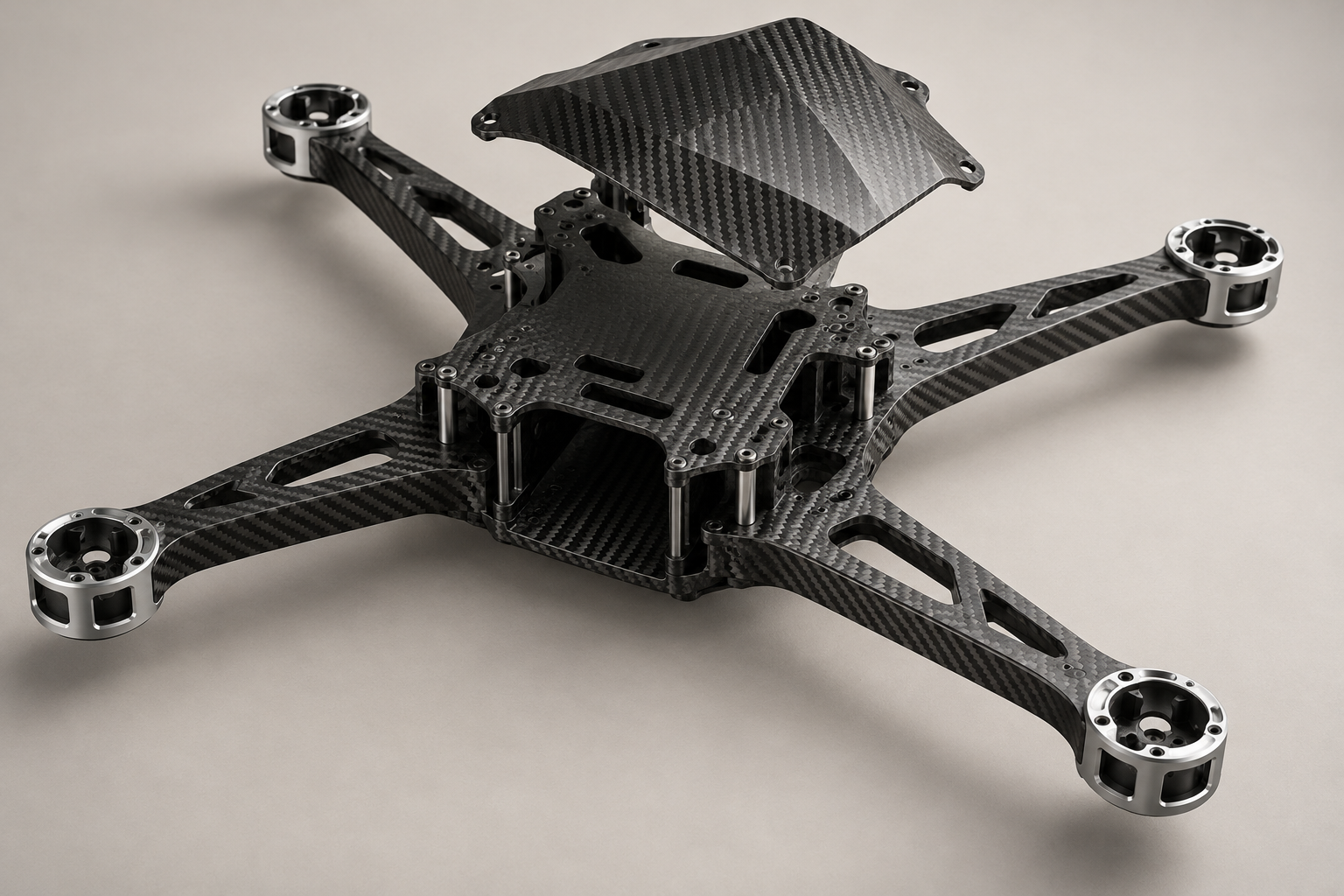

Explore design directions for robot structures, drone frames and vision enclosures.
